Half-C Suits

Half-C Shoulder Mount Suit

The Half-C Shoulder Mount Suit has a StaSafe® shoulder mount style hood attached to the body of a SealTite® sleeved garment having a 27” pressure-sealing zipper closure on the front closing from the shoulder to the bottom of the garment. The suit comes standard with a muffler installed in the crown for air circulation. The cover window (20 mils thick) rests inside a snap-enclosed pocket for easy replacement and provides excellent range of vision while protecting the permanently sealed 40 mils thick inner window. A valve-belt and hose assembly provided with your choice of fittings completes the Half-C Shoulder Mount Suit to provide chemical protection. Configure the suit to meet all your needs by choosing the glove options, optional 40 mil cover window or by customizing by adding options such as expanding the garment to accommodate a SCBA, installing a vent system, adding AC or elbow reinforcements to name a few. Half-C Shoulder Mount Suits are manufactured to order. Video demonstrations on the installation and removal of the SealTite® Sleeve Insert and Gloves are available in the SUPPORT link on our website.



Get a Quote
FEATURED PRODUCTS
078-7046-****
Half-C Shoulder Mount Suit in FlexLite Orange Over-sized Window
078-6564-****
Half-C Shoulder Mount Suit in HiGlo
078-6857-****
Half-C Shoulder Mount Suit in HiGlo Over-sized Window
078-7112-****
Half-C Shoulder Mount Suit in WinterGlo
078-6562-****
Half-C Shoulder Mount Suit in WinterGlo 20

Existing Designs

Choices include only the options in use on an existing design. Scroll down to see all available options.

Filter By:

Click on box in left column and then on the Compare Products at bottom of chart to view side-by-side comparison of selected products. Limit of 3 at one time.

Description Fabric
078-6557-****
Half-C Shoulder Mount Suit. The configuration shown includes the following options: Hansen Fitting and the standard size 40 mil sealed window with a cover window.
 CPE View
078-6805-****
This Half-C Shoulder Mount Suit is manufactured from CPE fabric, has a 20 mil cover window and does not have a hang up loop on the top of the head portion of the suit.  These photos show a Scott...
 CPE View
078-6868-****
Half-C Shoulder Mount Suit with an over-sized window.  This configuration is shown with the following options: Hansen Fitting and oversized 40 mil sealed window with a cover window. Bib Overall...
 CPE View
078-7164-****
Half-C Shoulder Mount Suit Over-sized window Cover window  AC  This configuration is shown with the following options: Hansen Fitting and oversized 40 mil sealed window with a cover ...
 FlexLite Orange View
078-7046-****
Half-C Shoulder Mount Suit with an over-sized window.  This configuration shown includes the following options: Hansen Fitting and the oversized window with cover window. Bib Overalls are sold ...
 FlexLite Orange View
078-6559-****
Half-C Shoulder Mount Suit. This configuration is shown with the following options: Hansen Fitting and the standard size sealed window with a cover window. Bib Overalls are sold separately.
 GraLite® 20 View
078-7096-****
This Half-C Shoulder Mount Suit is manufactured from GraLite® 20 fabric, has a 40 mil cover window and a fabric hang up loop on the top of the head portion of the suit. The Valve Belt Assembly on ...
 GraLite® 20 View
078-6564-****
Half-C Shoulder Mount Suit. The Red PVC gloves are featured in the photos of this Half-C.
 HiGlo View
078-6877-****
The garment is 6" longer than a typical Half-C and gradually flares from the chest to the hem of the garment to accommodate other apparatus the wearer may need under the hood.  It has been expand...
 HiGlo View
078-6857-****
Half-C Shoulder Mount Suit with an over-sized window
 HiGlo View
078-7112-****
Half-C Shoulder Mount Suit in WinterGlo
 WinterGlo View
078-6562-****
Half-C Shoulder Mount Suit in WinterGlo 20.  * Shown with 074-5516 Bib Overall sold separately.
 WinterGlo 20 View
Description Fabric

Any asterisk (*) shown in an Item No. will be replaced with a combination of digits identifying all of the options selected.

Available Options

Download Options Chart
Select attribute from list to see available options. Select option photo to enlarge.
SS - Sold SeparatelyAO - Option available at time of order

Fitting AO

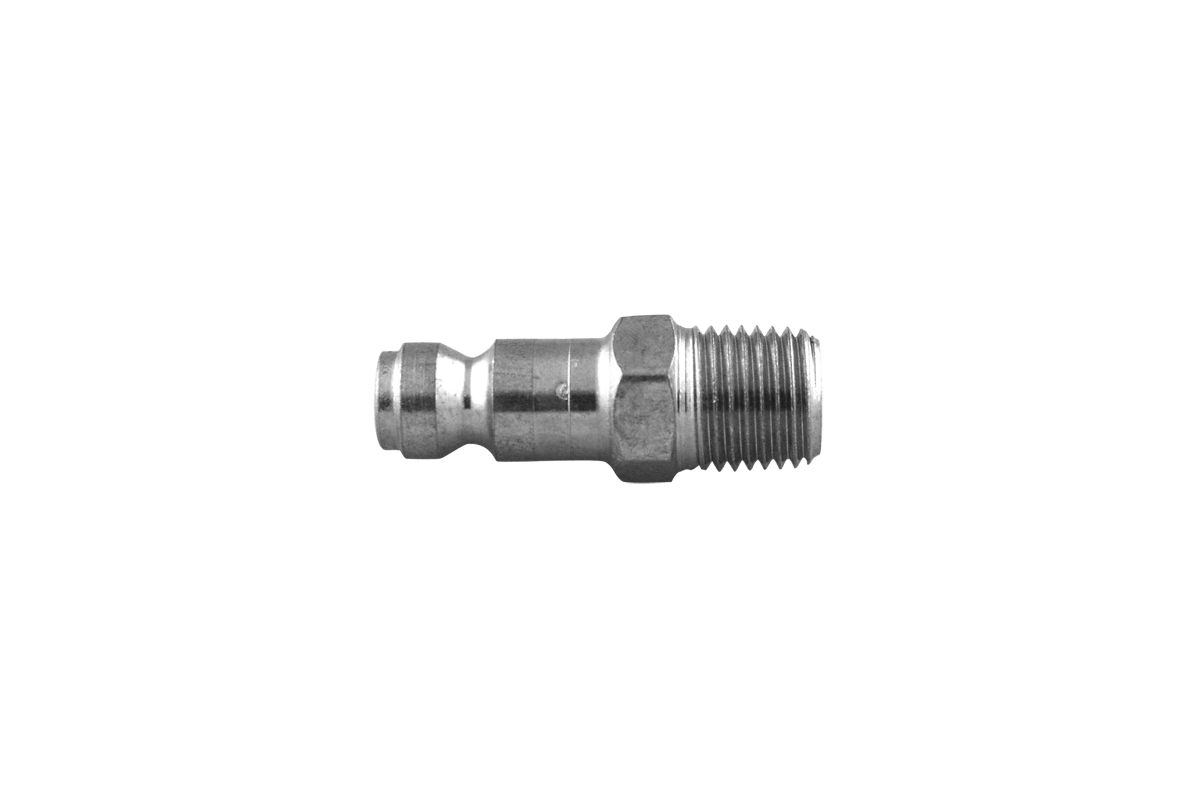

Brass Snap-Tite® Fitting

The fitting provided with the garment for connecting to the air source

Hansen Fitting

The fitting provided with the garment for connecting to the air source

Schrader Fitting

The fitting provided with the garment for connecting to the air source

Snap-Tite® Fitting

The fitting provided with the garment for connecting to the air source

Tru-Flate® Fitting

The fitting provided with the garment for connecting to the air source

Gloves AO

Blue Kevlar®-Lined Triple Dipped PVC

Triple-dipped PVC-coated glove with a textured layer covering the hand portion of the glove to about the wrist and having a liner made with Kevlar® to provide cut resistance as well as chemical protection. This glove has ANSI Level 3 cut protection.

Black Neoprene

Per the glove manufacturer: “Broad chemical resistance (acids, aliphatic solvents, solvent mixtures), increased by the thickness of the material. Good grip, due to embossed texture. Easy to pull on and off, due to chlorinated interior. The two neoprene layers superimposed increase the mechanical and chemical resistance. The glove red inner lay ensures that any wear is clearly visible"

Blue/Black Neoprene

Mapa Professional states that this glove has “Excellent chemical resistance with enhanced rough grip. Durable Neoprene with an inner layer in palm area of Natural Rubber for excellent dexterity, mechanical and chemical protection.”.

Heavy Duty Black Neoprene

According to the glove manufacturer – this glove has “superior chemical resistance against acids and alkalis, such as concentrated hydrofluoric acid, oils, and greases” It also offers some insulation from hot liquids due to the cotton lining.

View Gloves & Sleeves category for specialty glove availability

In addition to the gloves we sell with the garment, we offer specialty gloves available in case quantities.

Window-SM Suits

40 mil Standard Size Window 20 mil Cover Window

40 mil vinyl window heat-sealed into the face of the hood of the garment. A 20 mil field replaceable cover window is also included installed over the sealed window for additional protection and to protect the sealed window from scratches and nicks. The cover window fits into the frame flaps surrounding the sealed window.

40 mil Over-sized Window 40 mil Cover Window

A larger 40 mil vinyl window for increased visibility is heat-sealed into the face of the hood of the garment. A 40 mil field replaceable cover window is also included installed over the sealed window for additional protection and to protect the sealed window from scratches and nicks. The cover window fits into the frame flaps surrounding the sealed window and is held in place with snaps; the bottom frame flap is omitted

Optional Window-SM Suits AO

40 mil Standard Size Window - 40 mil Cover Window

40 mil thick field replaceable cover window to protect the sealed window from scratches, nicks and/or other minor damage. The cover window fits inside the window frame flap surrounding the sealed window

Over-sized Optional Window-SM Suits AO

40 mil Over-sized Window - 20 mil Cover Window

A 20 mil field replaceable cover window to install over the sealed window for additional protection and to protect the sealed window from scratches and nicks. The cover window fits into the frame flaps surrounding the sealed window; the bottom flap has been omitted. The cover window is held in place with snaps.

Cover Window Replacement-SM Suits SS AO

077-1012-5424 - 20 mil Cover Window (standard sized)

Pack of 12 20 mil field replaceable cover windows to install over the standard size sealed window for additional protection and to protect the sealed window from scratches and nicks. The cover window fits into the frame flaps surrounding the sealed window.

077-1012-5760 - 40 mil Cover Window (standard size)

Pack of 12 40 mil thick field replaceable cover windows to protect the sealed window from scratches, nicks and/or other minor damage. The cover window fits inside the window frame flap surrounding the sealed window.

Over-sized Cover Window Replacement-SM Suits SS AO

077-1012-6828 - 20 mil Cover Window (over-sized)

Pack of 12 20 mil field replaceable cover window to install over the oversized sealed window for additional protection and to protect the sealed window from scratches and nicks. The cover window has 3 snaps along the top of the cover window and snaps into place under the top window flap.

077-1012-6829 - 40 mil Cover Window (over-sized)

Pack of 12 40 mil field replaceable cover window to install over the oversized sealed window for additional protection and to protect the sealed window from scratches and nicks. The cover window has 3 snaps along the top of the cover window and snaps into place under the top window flap.

SCBA Back-SM Suits

An expanded section on the back of the garment to accommodate the wearing of a SCBA.

Flared Bottom-SM Suits

The garment is 6" longer than a typical Half-C and gradually flares from the chest to the hem of the garment to accommodate other apparatus the wearer may need under the hood such as an egress bottle.

Reinforced Elbows-SM Suits

The elbow, knee and seat regions are more at risk for cuts, tears and wear in some conditions. For added protection, an extra layer of fabric is sewn into the seams and sealed with the seams as well as on the top and bottom of the extra panel.

AC - Vent-SM Suits

Muffler

The muffler is designed to diffuse air from the top of the hood to provide maximum circulation of fresh air and reduce fogging.

AC Unit

Adding an air-conditioning unit helps to keep the environment inside the garment comfortable. We offer a variety of AC units in cool only or cool/warm. Contact our Customer Service to determine which units are available with this suit.

Vent

A vent is added to improve the comfort level of interior suit environment while in use. This photo shows the adjustable air valve on the inside of the garment per a request- it can also be located on the outside for easier access.

AC Unit & Vent

Adding an air-conditioning unit and a vent system helps to keep the environment inside the garment comfortable and air circulating. We offer a variety of AC units in cool only or cool/warm. Contact our Customer Service to determine which units are available with this suit.

Additional Garment Options AO

Imprinted

See Imprinting Garments Category for more information on imprinting available

Addition of 1 or 2 pockets available

1 or 2 pockets can be sealed onto the left side inside or outside. Standard pockets come with drain holes in the bottom. Current pocket sizes offered are: 5" x 6" (no drain holes), 5" x 9", 7" x 7" and 10" x 10". The pocket will be manufactured from the same fabric as the garment. More Photos 3

+/- 3" increments to sleeve length available

The design of our garments allows for non-binding movements such as reaching, bending, stooping, sitting, squatting etc. for the typical height and stature per size. For taller or shorter users we will customize the standard garment, sleeve or leg length plus or minus in 3" increments to allow a custom fit. Contact our Customer Service Department for more information.

Retrieval D-Ring

A factory installed Retrieval D-Ring can be added to a Half-C. IT MUST BE CONNECTED TO A FULL BODY HARNESS.

Additional Hang-up Loops

Additional black PVC hang up loop rings can be installed

Fabric

HiGlo

HiGlo is a bright yellow, proprietary polyvinyl chloride compound that is coated on both sides. Our compound gives the fabric a softer, more pliant feel and superb low temperature flexibility. At 19 mils to 21 mils thick, HiGlo is the fabric of choice for maintenance and operations personnel within the chemical/petrochemical and HF Refining industries.

CPE

Chlorinated Polyethylene is easily recognized by its bright orange color so that it is readily identifiable in hazardous conditions. CPE is a 23 mil thick proprietary formulated fabric that provides outstanding chemical and flame resistance while maintaining flexibility in low temperatures. It also provides superior protection from inorganic acids, oxidizing acids and aliphatic hydro-carbons. CPE fabric meets and exceeds the Flame Impingement criteria set forth in ASTM F1358.

GraLite®

GraLite® is a pearl gray, proprietary polyvinyl chloride compound that is coated on both sides. The 19 mils to 21 mils thick material offers resistance to most aliphatic hydrocarbons, caustics, organic acids and alcohols.

FlexLite Orange

FlexLite Orange is easily recognized by its bright neon orange color. At 19 mils to 21 mils thick, FlexLite Orange is similar to HiGlo except for its difference in color.

GraLite® 20

GraLite® 20 is recommended for more severe corrosive and abrasive conditions because of its 24 mils to 26 mils thickness. With a PVC coating on one side, GraLite® 20 has proven itself to be a rugged, durable protective fabric.

WinterGlo

WinterGlo is a bright pink and coated on both sides. WinterGlo is 19 mils to 21 mils thick and easily identified by its distinctive color and flexibility.

WinterGlo 20

WinterGlo® 20 is 24 mils to 26 mils thick and offers outstanding chemical resistance. WinterGlo 20 is easily identified by its one side coating and our proprietary PVC formulation keeps fabric soft and flexible year round.
